Date Palm Rachis as a Local and Renewable Structural Material for Rural Communities in Egypt

Eman A. Darwish; Yasser M. Mansour; Hamed Elmously

doi:10.21625/essd.v2i2.173

Eman A. Darwish , Yasser M. Mansour , Hamed Elmously

https://doi.org/10.21625/essd.v2i2.173

Issue
Vol. 2 Issue 2 (2017): Resilient Development toward a Sustainable Environment

Submitted
January 30, 2018

Accepted
January 30, 2018

Published
January 31, 2018

Keywords:

Date Palm Rachis, Mechanical Properties, Natural Structural Material

PDF XML

Abstract

Date Palm Rachis has been widely used in sheathing of houses in the rural communities in Egypt and the Middle East, as a local and cheap material that naturally resists direct solar radiation and humidity. Lately, researchers around the world began to build complete structures using Date Palm Rachis to take advantage of its abundance and natural resistance. However, due to the lack of the required mechanical properties for structural analytical modeling, mock ups are used to assess the structural properties of Date Palm Rachis. This tool of assessment is insufficient in the consideration of wind or temporary and unforeseen loads. This paper introduces the closest estimations of the complicated mechanical properties required for structural analytical modeling, according to the available equipment and the variable nature of Date Palm Rachis. The results showed that Date Palm Rachis is a promising structural material with structural properties that are competitive to that of imported timbers in Egypt. This paper invites researches and builders to exploit the potentials of Palm Rachis as a structural material for rural communities.

Full text article

Generated from XML file

References

أيمن إيهاب, عفيفي، عقبة, 'استخدام المخلفات الزراعية فى المنشآت الريفية', in مؤتمر مستقبل التنمية المستدامة في مصر(القاهرة، مصر: وزارة التنمية المحلية المصرية, 2012), II, 184-99 (p. 6).

Fathy, Hassan, Architecture for The Poor: An Experiment in the Rural Egypt (Illinois, USA: Univeristy of Chicago, 1993).

Kennedy, Joseph, Building Without Borders: Sustainable Construction for the Global Village (Ontario, Canada: New Society Publishers, 2004).Hamed ElMously, 'The Palm Fibers for the Reinforcement of Polymer Compoaites: Prospects and Challenges', in The First Ain Shams Internationak Conference on Environmental Engineering (Cairo, Egypt: Ain Shams University, 2005), pp. 866-86.

Elmously, Hamed,'The Industrial Use Of The Date Palm Residues An Eloquent Example Of Sustainable Development', in International Conference on Date Palms (Cairo, Egypt: United Arab Emirates University, 2001), II, 866-86.

Ibrahim, Nashwa,Appropriate Building Patterns for Saint Catherine, Egypt (Cairo , Egypt: Egyptian Earth Construction Association, 2010).

Piesik, Sandra,Arish: Palm-Leaf Architecture, 2nd edn (London, UK: Thames & Hudson, 2012).

Domaine de Boisbuchet, Palm Leaf workshop, World Architecture News, http://www.worldarchitecturenews.com/wanmobile/mobile/article/23324, last accessed July,2017.

Mascia, Nilson T. and Lahr, Francisco A.R,. 'Remarks on Orthotropic Elastic Models Applied to Wood', Materials Research, 9 (2006), 301-10.

Green, David; Winandy,Jerrold and Kretschmann, David, 'Mechanical Properties of Wood', in Wood Handbook: Wood as an Engineering Material, 100th edn (Wisconsin: United States Department of Agriculture, 2010), p. Chapter 5.

Mansour, Yasser; Elmously, Hamed; Darwish, Eman A., Utilizing Palm Rachis for Eco-Friendly and Flexible Construction in Egypt, 3rd World Sustainable Built Environment, Hong Kong, 2017.

Timber structures, Structural timber and glued laminated timber, Determination of some physical and mechanical properties, English version of DIN EN 408-2004

C. S. Echenique Racero, B. I. Banda Nieto and J. R. Hernández Ávila, “Physical and Mechanical Properties of the Wood Used in Indigenous Housing of the Tuchín Township, Department of Cordoba, Colombia” INGE CUC, vol. 11, no. 1, pp.99-108, 2015.

Sasaki, Yasutoshi; Andi, Kosei; Acoustoelastic Phenomena of Wood, 5th World Conference on Timber Engineering, Montreasux, Switzerland, 1998.

Authors

Eman A. Darwish

Department of Architecture, Faculty of Engineering, Ain Shams University, Egypt

[email protected] (Primary Contact)

Yasser M. Mansour

Department of Architecture, Faculty of Engineering, Ain Shams University, Egypt

Hamed Elmously

Department of Production and Design, Faculty of Architecture, Ain Shams University, Egypt

Author Biographies

Eman A. Darwish, Department of Architecture, Faculty of Engineering, Ain Shams University, Egypt

Department of Architecture, Faculty of Engineering, Ain Shams University

Yasser M. Mansour, Department of Architecture, Faculty of Engineering, Ain Shams University, Egypt

Department of Architecture, Faculty of Engineering, Ain Shams University

Hamed Elmously, Department of Production and Design, Faculty of Architecture, Ain Shams University, Egypt

Department of Production and Design, Faculty of Architecture, Ain Shams University

Darwish, E. A., Mansour, Y. M., & Elmously, H. (2018). Date Palm Rachis as a Local and Renewable Structural Material for Rural Communities in Egypt. Environmental Science & Sustainable Development, 2(2), 115–131. https://doi.org/10.21625/essd.v2i2.173

Download Citation

This work is licensed under a Creative Commons Attribution 4.0 International License.

The Author shall grant to the Publisher and its agents the nonexclusive perpetual right and license to publish, archive, and make accessible the Work in whole or in part in all forms of media now or hereafter known under a Creative Commons Attribution 4.0 License or its equivalent, which, for the avoidance of doubt, allows others to copy, distribute, and transmit the Work under the following conditions:

Attribution: other users must attribute the Work in the manner specified by the author as indicated on the journal Web site;

With the understanding that the above condition can be waived with permission from the Author and that where the Work or any of its elements is in the public domain under applicable law, that status is in no way affected by the license.

The Author is able to enter into separate, additional contractual arrangements for the nonexclusive distribution of the journal's published version of the Work (e.g., post it to an institutional repository or publish it in a book), as long as there is provided in the document an acknowledgement of its initial publication in this journal.
Authors are permitted and encouraged to post online a pre-publication manuscript (but not the Publisher's final formatted PDF version of the Work) in institutional repositories or on their Websites prior to and during the submission process, as it can lead to productive exchanges, as well as earlier and greater citation of published work (see The Effect of Open Access). Any such posting made before acceptance and publication of the Work shall be updated upon publication to include a reference to the Publisher-assigned DOI (Digital Object Identifier) and a link to the online abstract for the final published Work in the Journal.
Upon Publisher's request, the Author agrees to furnish promptly to Publisher, at the Author's own expense, written evidence of the permissions, licenses, and consents for use of third-party material included within the Work, except as determined by Publisher to be covered by the principles of Fair Use.
The Author represents and warrants that:

The Work is the Author's original work;
The Author has not transferred, and will not transfer, exclusive rights in the Work to any third party;
The Work is not pending review or under consideration by another publisher;
The Work has not previously been published;
The Work contains no misrepresentation or infringement of the Work or property of other authors or third parties; and
The Work contains no libel, invasion of privacy, or other unlawful matter.

The Author agrees to indemnify and hold Publisher harmless from Author's breach of the representations and warranties contained in Paragraph 7 above, as well as any claim or proceeding relating to Publisher's use and publication of any content contained in the Work, including third-party content.

This work is licensed under a Creative Commons Attribution 4.0 International License.

Received 2018-01-30
Accepted 2018-01-30
Published 2018-01-31

1. Introduction

The increasing costs of the conventional building materials, such as concrete and steel, led to the dependence on junk and scrap to build houses in poor communities in Egypt. The governmental efforts to solve the problem of this informal construction trend require long-term financial support that is not guaranteed under the circumstances of the high inflation rate and the global economic crisis. Exploring natural building materials and local building materials in a society provides a new chance in the local development that is driven from the inside. Mudbrick is one of the common building materials used to build houses in the rural communities, and famous architects have tried to revive this history (Fathy, 1993). Lately, more attention has been paid to agricultural residues to be the new building material that solves the problem of the decrease of the soil fertility that is required to make the mudbricks (Kennedy, 2004). One of the most abundant residues in Egypt and the Middle East is Date Palm Rachis (Elmously, 2005).

The dried date palm parts and the date palm main components are illustrated in Figure 1 and Figure 2.

Date palm rachis has been used as a building material in rural areas in Egypt and the Middle East. This technical heritage has accumulated over centuries due to the abundance of the highly renewable date palm rachis, as date palm rachis is the most available pruning residues of Date Palm Trees that cover the vast area of the deserts, oases and the Nile Valley, as shown in Table 1 (Elmously, 2005).

Table 1.Statistics of Date Palm Pruning Residuesin Egypt (Elmously, 2005)
Quantity Available annually (air dry	Palm	Palm	Stem	Coir	Petiole	Total
weight-10% moisture content	Rachis	leaflet				(ton/year)
Per palm, kg (mature female)	9.75	8.00	7.00	1.25	4.4	30.4
Total in Egypt, thousand tons	105.3	86.4	75.6	13.5	86.4	328.3

Traditionally, rural houses, eco-lodges and public places combined date palm rachis and date palm trunks to build roofs. In Sinai, date palm rachis is accumulated in layers to make exterior sheathing for the roofs with thicknesses that exceeds 20 cm to shield the houses from the direct sunlight, as illustrated in Figure 3 (Ibrahim, 2010). In Siwa and the western oases, date palm trunks are halved and used as ceiling beams, where Date Palm Rachis is used as a sheathing material that will enhance the interior design of the ceiling, as illustrated in Figure 4 (Alamuddine, 2001). In temporary structures in the Nile valley such as shades, date palm rachis is threaded to make walls and roofs that are fastened to small tree stems which work as columns and beams in the corners (Unknown Author, 2001).

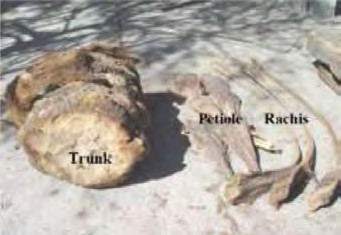

Figure 1.Dried Date Palm Main Parts (Mahdavi, 2010)

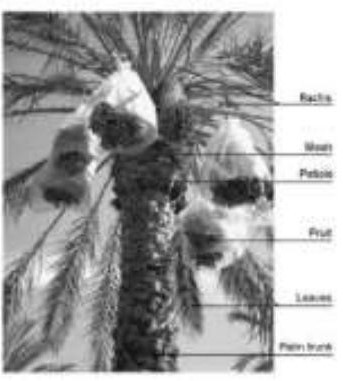

Figure 2.Date Palm Main Components

Figure 3.Palm Trunk Beams used for traditional roofing in Sinai (Ibrahim, 2010)

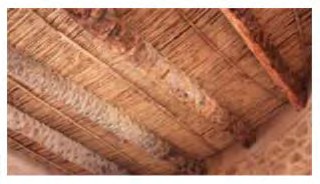

Figure 4.Roofing by Palm Rachis Adrere Amellal Eco-Lodge (Alamuddin, 2001)

Figure 5.Date Palm Rachis Walls in Arish House (Piesik, 2012)

Figure 6.Date Palm Rachis walls and roofs in Arish House (Piesik, 2012)

This increasing dependence on date palm rachis as a structural material led to previous research that push the limits of date palm rachis as an independent structural material to build cheap and fast shades. These experiments depended solely on building full scale mock-ups of the proposed shades due to the lack of mechanical properties of palm rachis that are required for the structural analysis, although this could help to expect static loads, wind, seismic loads and the limits of the spans of the proposed structures. The first pioneering experiment was based on a proposal of gathering date palm rachis as bundles that are formed as arches. Those arches were planted in the wet soil at spacing of 5m, while covering a span of 13m. As revolutionary as it sounds, the structure succeeded in covering the span, but only after using palm trunks as intermediate columns along every arch on intervals of 3.25 m. Hence, the onsite decision led to construct a shade with a span that is actually only 3.25 m (Error processing citation, n.d.). Figure 7 pictures the vault during construction, while Figure 8 illustrates the interior columns that were closely spaced. The connection used was rope-based connection (Figure 9).

Figure 7.The Vault during Construction (Piesik, 2012)

Figure 8.Interior Columns (Piesik, 2012)

Figure 9.Rope based Connections (Piesik, 2012)

Another experiment using date palm rachis to build shades was based on the structural concept of ring beams.

Date palm rachis were gathered to make curved bundles that are planted along the parameter of the proposed circle to cover. Then, a plywood ring was made to attach the edges of the curved bundles. However, the height of the structure decreased due to the deflection that happened under the weight of the final sheathing, as illustrated in Figure 10 to Figure 12 (”Turn Over a New Leaf”, 2013).

Figure 10.Ring beam in structure (Boisbushet, 2013)

Figure 11.Structure after completion (”Turn Over a New Leaf”, 2013)

Figure 12.Deformation after sheathing (”Turn Over a New Leaf”, 2013)

Therefore, it can be concluded from the previous literature review, that building shades using date palm rachis while depending solely on building real mock-ups is not sufficient to predict onsite behavior and unexpected loads such as sheathing weight, wind and seismic loads. Therefore, this paper aims to introduce the closest estimation of the mechanical properties of date palm rachis, according to the natural variations of date palm rachis and the available equipment in the laboratories of Faculty of Engineering, Ain Shams University.

2. Material and Methodology

Previous research showed that the properties of date palm rachis are competitive to imported wood species, specifically those of spruce wood (Unknown Author, 2001). However, due to the complexity of the variable nature of date palm rachis, those previous studies only measured some of the longitudinal properties for the whole date palm rachis regardless of the other two dimensions, as date palm rachis is considered an anisotropic material (Figure 13).

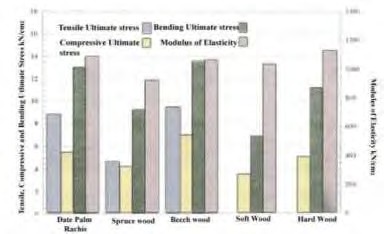

Figure 13.Comparison between the mechanical properties of Palm Rachis and imported wood and their standard values in ASTM D2555-88 (Elmously, 2001)

In nature, materials are classified into isotropic, orthotropic, and anisotropic materials. Isotropic materials are the materials where the mechanical properties are identical in all directions, such as glass and metals. On the other hand, the properties of fibrous materials such as timber vary according to the fiberds’ direction, which makes them anisotropic materials (Mascia, & Lahr, 2006). However, in engineering elastic models timber is considered an orthotropic material.

The linear orthotropic model suggests three planes of symmetry in the following three directions: longitudinal, radial and tangential, which are coincident with the three Cartesian directions: x, y and z. Where longitudinal direction of timber is parallel to the fibers, the radial direction is perpendicular to the fibers and the growth rings and the tangential direction is perpendicular to the fibers and tangential to the growth rings (Green et al., 2010). Accordingly, if date palm rachis is to be defined as an orthotropic material, the properties in the tangential and radial directions are identical due to the lack of growth rings in Date Palm Rachis, as illustrated in Figure 14 (Mansour et al., 2017).

Figure 14.Axes of material in Timber and Date Palm Rachis (Yasser et al., 2017)

The considered properties to be measured are: Tension Stress, Longitudinal Modulus of Elasticity, Radial/Tangential Modulus of Elasticity, Longitudinal-Radial/Tangential Shear Modulus. These properties were considered according to the required properties for structural analysis for orthotropic materials in SAP2000; the most widely used software for structural analysis. The rest of the properties are to be measured in the upcoming papers.

Figure 15.Material Property interface in SAP2000 (Author’s own, n.d.)

3. Discussion

The following properties were measured for ”Baladi” species of date palm trees in Minya governorate along the Nile Valley in the metalloids Laboratory and Polymers Laboratory in the Faculty of Engineering, Ain Shams University. The properties are carried out on the middle portion of the rachis using DIN EN 408-2004 standards with 12% moisture content.

3.1. Tensile Stress

The tensile stress was measured through the Stress-Strain Curve of Tension. The yield stress is the stress at the end of the elastic zone, while the ultimate stress is the highest stress before the failure. The ultimate tensile stress has been measured for the whole date palm rachis from three species in Egypt and showed a mean value of 80 MPa. New measurement took place in the Polymers Labs in the Faculty of Engineering using precast Epoxy grips. The experiment was evaluated on three specimens to validate the results according to previous studies. The nominal dimensions of the specimens are illustrated in Figure 16. Each specimen was inserted in the ends in hollow PVC tubes and with a length of 10 cm and epoxy SIKADUR was poured inside, then the tubes were sewn off using lathe. The testing was made on 3 samples of Baladi Species (Figure 17), by Lloyd 300k capacity testing machine, with a rate of 2 mm/min. according to DIN EN 408-2004 (Figure 18).

Figure 16.Specimen Dimension (Author’s own, n.d.)

The failure of each specimen was marked when the first crack in the epoxy appeared, as the crack happens due to the unique behavior of the palm rachis under tension, where the fibers tend to loosen, leading to the cracking of the brittle epoxy around (Figure 19). This can be noticed after the epoxy could be easily removed, revealing longitudinal cracks between the loose fibers in the specimen underneath, which indicates the failure of the specimen (Figure 20).

The Stress-Strain curves of the three specimens showed considerable variations, which was expected as the specimen were not taken from the same rachis (Figure 21). The Stress-Strain curves showed the following:

It was found to be relatively close to that of white spruce in terms of the acute inclination of the curve in the elastic zone.
The Minimum Yield Stress was found to be 40 N/mm².
The mean of Minimum Tensile stress was found to be 65 N/mm².
The mean of Yield Stress was found to be 55N/mm².
The mean of the Tensile Stress was found to be 75 N/mm².

These values were considerably close to those of previous research (Unknown Author, 2001).

Figure 17.The tension specimens before testing (Author’s own, n.d.)

Figure 18.The tension procedures in the testing machine (Author’s own, n.d.)

Figure 19.Longitudinal cracks in Epoxy and Specimen (Author’s own, n.d.)

Figure 20.Zoom in on the longitudinal cracks under the Epoxy (Author’s own, n.d.)

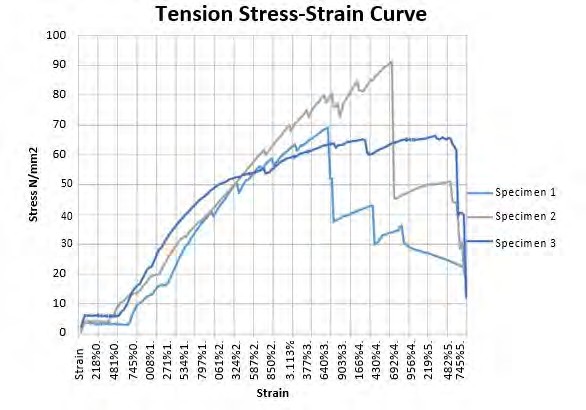

Figure 21.Tensile Stress-Strain Curves of the 3 specimens

3.2. Longitudinal Modulus of Elasticity

The longitudinal modulus of elasticity is often obtained by bending for rough and natural materials like bamboo and palm rachis, as the preparation procedures for tension were found to be complicated as shown in the previous section. The longitudinal modulus of elasticity included an effect of shear deflection. Therefore, the Shear-Free Elasticity Modulus is calculated by increasing the Apparent Modulus of Elasticity by 10% (Green et al., 2010).

The measurements were made for 5 specimens that were dried for 12% moisture content or less. The bending measurement was over a span of 360 mm in relative to the specimen dimension, as illustrated in Figure 22, according to DIN EN 408-2004 by Lloyd 300k capacity testing machine, with a rate of 2 mm/min (Figure 23).

Figure 22.Dimensions of the bending specimen (Author’s own, n.d.)

The failure of each specimen was automatically identified by the machine when no more resistance was received. The failure of the specimen had a sharp breaking point, with longitudinal cracking as the fibers loosen from the load once it exceeded the ultimate limits of the material (Figure 24 and Figure 25).

According to DIN EN 408-2004, the apparent modulus of elasticity is calculated using load, displacement and the

moment of inertia, by the following equation:

(1) \documentclass{article} \usepackage{amsmath} \begin{document} \displaystyle E_{\text{app}} = \frac{l^3 (F_2 - F_1)}{48I (W_2 - W_1)} \end{document}

F₂-F₁ is an increment of load on the straight line portion of the load-deformation curve in Newtons.
W₂-W₁ is the increment of deformation corresponding to F2-F1 in millimeters.
li is the span between supporters in millimeters.
I is the second moment of area, in millimeters to the fourth power.

Therefore, the testing results needed are Load-Machine Extension curves (Figure 26).

Thus, according to equation 1, the mean Eapp of the 5 specimen was found to be 9532.5 N/mm², and by excluding the shear effect, the actual El is 10287 N/mm². This result was considerably close to those of previous research (Unknown Author, 2001).

Figure 23.The Bending Procedures in the testing machineb (Author’s own, n.d.)

Figure 24.The Failure Pattern in the specimens (Author’s own, n.d.)

Figure 25.The longitudinal cracking in a specimen (Author’s own, n.d.)

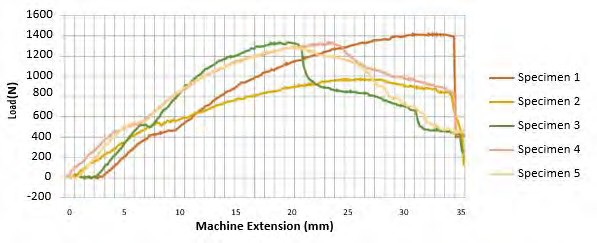

Figure 26.Load-Extension Curves of the 5 specimen in theApparent Modulus of Elasticity (Authors)

3.3. Radial/TangentialModulus of Elasticity E _r/t

Due to the natural long shape of palm rachis that is unable to be formed into specimen that can be tested for tension or bending perpendicular to fibers, a compression test was used to calculate the radial/tangential modulus of elasticity that is perpendicular to fibers. The palm rachis were dried to 12% moisture content, shaped into 5 specimens and tested by Lloyd 50k capacity machine, with a rate of 1.5 mm/min (Figure 27 to Figure 29).

Figure 27.Dimensions of the specimen of compression (Author’s own, n.d.)

Figure 28.The Compression procedures in the testing machine (Author’s own, n.d.)

The failure of each specimen was automatically identified by the machine when no more resistance was received. The specimens suffered buckling under compression, in addition, cracks were originated between the fibers that tend to loosen from the load once it exceeded the ultimate limits of the material. According to DIN-EN 408-2004, the compression modulus of Elasticity is calculated using load, displacement and the dimensions, by the following equation:

(2) \documentclass{article} \usepackage{amsmath} \begin{document} \displaystyle E_c = \frac{h_o (F_2 - F_1)}{bl (w_2 - w_1)} \end{document}

Figure 29.The failure patterns of the compression specimens (Author’s own, n.d.)

Where

F₂-F₁is an increment of load on the straight line portion of the load-deformation curve in Newtons.
W₂-W₁ is the increment of deformation corresponding to F₂-F₁ in millimeters.
h0 is the height of the sample.
b is the width of the cross section of the sample.
l is the thickness of the cross section sample.

Therefore, the testing results needed are Load-Machine Extension curves, which are illustrated in Figure 30.

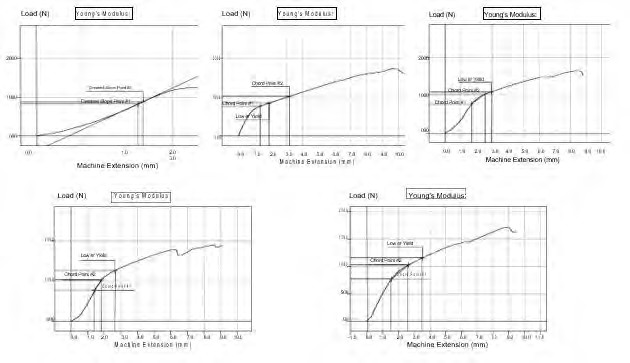

Figure 30.Load-Machine Extension Curves of the 5 specimenin the compressive Modulus of Elasticity (Author’s own, n.d.)

3.4. Longitudinal-Radial/TangentialShear Modulus G_lr/t

No previous researches assigned shear modulus of Date palm rachis. The Shear Modulus induced from Bending measures the ratio of the stress and strain resulting from the shear deflection. The resultant Shear Modulus is based on shear strain parallel to fibers and shear stress perpendicular to fibers. DIN EN 408-2004 contains a sector that is specified to measure the shear modulus through the Variable Span method; where the apparent modulus of elasticity is measured using bending testing over 3 variable spans that are chosen based on the rules of DIN EN 408-2004, then the sum of the reciprocal of the values of the 3 spans is used in the following equation:

(3) \documentclass{article} \usepackage{amsmath} \begin{document} \displaystyle G = \frac{K_G}{K_1}, K_1 = \frac{\Delta \frac{1}{E_{\text{app}}}}{\Delta \frac{h}{l}^2} \end{document}

Where KG is 1.2 for rectangular or square cross sections, and K1 is the slope of the graph of the reciprocal of the 3 spans Eapp and the squared ratio of sample height to span between supports. The testing procedure is illustrated in Figure 31 through Figure 35.

Figure 31.Dimensions of the Bending specimen (Author’s own, n.d.)

Figure 32.The Bending Procedures in the testing machine for span 220 mm (Author’s own, n.d.)

Figure 33.The Bending Procedures in the testing machine for span 280 mm (Author’s own, n.d.)

The failure patterns were found to be more acute as the span increased. The failure pattern in the specimens of the 220 mm span testing was a mild deflection, while deep longitudinal cracks and stronger deflection occurred to the specimens of the 280 mm span testing. However, the specimens of the 400 mm span testing suffered sharp breakage points at the middle of each specimen. The results of the tests are illustrated in Figure 36-Figure 39.

The final results of the testing showed that Glr/t was 109.2 MPa according to equation 3, which lies within the 50-150 MPa limits of Shear Modulus of Softwoods under the same moisture content (Green et al., 2010).

Figure 34.The Bending Procedures in the testing machine for span 400 mm (Author’s own, n.d.)

Figure 35.The failure patterns of the Variable Span Method

Figure 36.Graphs of the apparent Modulus of Elasticity of span 220 mm (Author’s own, n.d.)

Figure 37.Graphs of the apparent Modulus of Elasticity of

Figure 38.Graphs of the apparent Modulus of Elasticity of span 280 mm (Author’s own, n.d.)

Figure 39.The slope of K1 (Author’s own, n.d.)

3.5. Calculation of Radial-Tangential Shear Modulus G_rt

As noticed from the previous testing, Shear modulus was entirely based on the measurement of longitudinal apparent modulus of elasticity. However, most of the previous research have not indicated how to measure the radial-tangential shear modulus that is entirely perpendicular to fibers as it can be negligible relative to the much higher values of the properties in the direction of fibers, specially for naturally long-shaped elements like Date Palm Rachis. The same applies for Poisson ratio measurements. Therefore, by assuming Poisson ratios with refer- ence to the properties to Spruce wood as 0.30, Grt can be calculated by the following equation (Racero et al., 2015):

(4) \documentclass{article} \usepackage{amsmath} \begin{document} \displaystyle G_{RT} = 0.5 \frac{E_T}{1+\mu_{RT}} = 0.5 \frac{105.45}{1+0.30} = 40.55\ N/mm^2 \end{document}

4. Conclusion

Date palm rachis has been used for traditional construction using the pure instinct and experience of the rural builders in the rural areas in Egypt and the Middle East. However, the pre-construction structural analysis could help to make the date palm rachis-based structures more resistant to unpredictable forces like winds, seismic loads and onsite behaviors. This paper introduced the closest estimations of the mechanical properties of whole date palm rachis using the available equipment in the laboratories of the Faculty of Engineering, Ain Shams University.

Although date palm rachis is considered an anisotropic material, the linear orthotropic model was used to identify the axes of the material where the properties are to be measured. It was found that the properties of date palm rachis in the linear orthotropic model are supposed to be identical in the radial and tangential directions. The proposed date palm rachis properties are summarized in Table 2.

These properties cover most of the required properties to define Date Palm Rachis into structural analysis software like SAP2000. These findings prove that Date Palm Rachis is competitive to imported wood species in Egypt. This opens the door for further researches to structurally evaluate the potentials of Date Palm Rachis as a versatile building material that can be used as a substitute to expensive imported wood in Egypt.

Table 2.The mechanical properties of date palm rachis baladi species
Mechanical Property	Property Symbol in SAP2000	Value (N/mmm)
Minimum Yield Stress	F_y	40
Minimum Tensile Stress	F_u	65
Effective Yield Stress	Fye	55
Effective Tensile Stress	Fue	75
Longitudinal Modulus of Elasticity E_l	E₁	10287
Radial & Tangential Modulus of Elasticity Er, E_t	E₂, E₃	105.45
Longitudinal-Tangential Shear Modulus G_lt,	G12, G13	109.2
Longitudinal-Radial Shear Modulus Glr
Radial-Tangential Shear Modulus Grt	G23	40.55

Acknowledgments

Special thanks for Prof. Nahed Abdel Salam, the professor of the metalloids Laboratory in the Faculty of Engineering, Ain Shams University, for facilitating the procedures of the measurements. The authors would like to acknowledge ”Sika Egypt” for donating the epoxy used in the experiments.

References

مؤتمر مستقبل التنمية المستدامة في مصر(القاهرة، مصر: وزارة التنمية المحلية المصرية, 2012. 184-996.
Fathy Hassan. Univeristy of Chicago: Illinois, USA; 1993.
Kennedy Joseph. Building Without Borders: Sustainable Construction for the Global Village. The First Ain Shams Internationak Conference on Environmental Engineering. 2004;866-86.
Industrial Use Of The Date Palm Residues An Eloquent Example Of Sustainable Development. International Conference on Date Palms. 2001; II:866-86.
Ibrahim. Egyptian Earth Construction Association: Egypt (Cairo , Egypt; 2010.
Palm-Leaf Architecture: Piesik, Sandra,Arish; 2012.
Boisbuchet Domaine. Palm Leaf workshop. World Architecture News.Publisher Full Text
Mascia Nilson T., Lahr Francisco A.R.. 'Remarks on Orthotropic Elastic Models Applied to Wood'. Materials Research. 2006; 9:301-10.
Green David, Winandy Jerrold, Kretschmann David. Wood Handbook: Wood as an Engineering Material. United States Department of Agriculture: United States Department of Agriculture; 2010.
Mansour Yasser, Elmously Hamed, Darwish Eman A.. Hong Kong; 2017.
English version of DIN EN 408-2004.
Racero C.S.Echenique, Nieto B.I.Banda, Ávila J.R.Hernández. INGE CUC: Colombia; 2015.
Sasaki Yasutoshi, Andi Kosei. Acoustoelastic Phenomena of Wood. 5th World Conference on Timber Engineering. 1998.

Plum Analytics

Read Counter : 2505 Download : 572

Share Now

[BIBR-1] مؤتمر مستقبل التنمية المستدامة في مصر(القاهرة، مصر: وزارة التنمية المحلية المصرية, 2012. 184-996.

[BIBR-2] Fathy Hassan. Univeristy of Chicago: Illinois, USA; 1993.

[BIBR-3] Kennedy Joseph. Building Without Borders: Sustainable Construction for the Global Village. The First Ain Shams Internationak Conference on Environmental Engineering. 2004;866-86.

[BIBR-4] Industrial Use Of The Date Palm Residues An Eloquent Example Of Sustainable Development. International Conference on Date Palms. 2001; II:866-86.

[BIBR-5] Ibrahim. Egyptian Earth Construction Association: Egypt (Cairo , Egypt; 2010.

[BIBR-6] Palm-Leaf Architecture: Piesik, Sandra,Arish; 2012.

[BIBR-7] Boisbuchet Domaine. Palm Leaf workshop. World Architecture News.Publisher Full Text

[BIBR-8] Mascia Nilson T., Lahr Francisco A.R.. 'Remarks on Orthotropic Elastic Models Applied to Wood'. Materials Research. 2006; 9:301-10.

[BIBR-9] Green David, Winandy Jerrold, Kretschmann David. Wood Handbook: Wood as an Engineering Material. United States Department of Agriculture: United States Department of Agriculture; 2010.

[BIBR-10] Mansour Yasser, Elmously Hamed, Darwish Eman A.. Hong Kong; 2017.

[BIBR-11] English version of DIN EN 408-2004.

[BIBR-12] Racero C.S.Echenique, Nieto B.I.Banda, Ávila J.R.Hernández. INGE CUC: Colombia; 2015.

[BIBR-13] Sasaki Yasutoshi, Andi Kosei. Acoustoelastic Phenomena of Wood. 5th World Conference on Timber Engineering. 1998.

Date Palm Rachis as a Local and Renewable Structural Material for Rural Communities in Egypt

Abstract

Full text article

References

Authors

Eman A. Darwish, Department of Architecture, Faculty of Engineering, Ain Shams University, Egypt

Yasser M. Mansour, Department of Architecture, Faculty of Engineering, Ain Shams University, Egypt

Hamed Elmously, Department of Production and Design, Faculty of Architecture, Ain Shams University, Egypt

Address

Social Media

Article Sidebar

Abstract

Full text article

References

Authors

Eman A. Darwish, Department of Architecture, Faculty of Engineering, Ain Shams University, Egypt

Yasser M. Mansour, Department of Architecture, Faculty of Engineering, Ain Shams University, Egypt

Hamed Elmously, Department of Production and Design, Faculty of Architecture, Ain Shams University, Egypt

Article Details
